ANTENNA-2: OFF-CENTER-FED DIPOLE

( Inverted-V Configuration, Modest Split )

ANT-2-B5



This lightweight Off-Center-Fed Dipole with a very modest feedpoint split.

SINGLE-CORE-BALUN

  • Overall Length:  20.5m
  • Feedpoint Split:  42.75% / 57.25%
  • Wire:  CQ-534
  • BALUN:  B5
    • 4:1 Guanella Balun
    • Single Ferroxcube TX36/23/15-4A11 toroid
    • Permeability 850
  • 12m of RG-174 Coax
  • Weight:  340 gr. (about 12 oz.) including coax

ANT-2-B6



This lightweight Off-Center-Fed Dipole with a very modest feedpoint split.

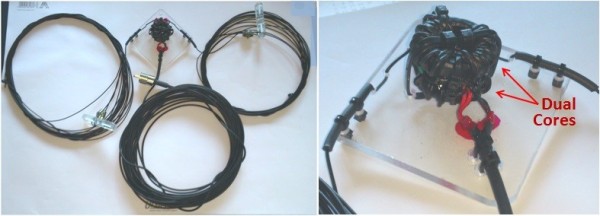

DUAL-CORE-BALUN

  • Overall Length:  20.5m
  • Feedpoint Split:  42.75% / 57.25%
  • Wire:  CQ-534
  • BALUN:  B6
    • 4:1 Guanella Balun
    • Dual Ferroxcube CST 29/19/7.5-4S2  toroids
    • Permeability 850
  • 12m of RG-174 Coax
  • Weight:  350 gr. (about 12 oz.) including coax
