Replacement T/R Relay for Eagle

Oli, DL3MCO  has suggested replacing the Ten-Tec EAGLE's original                                    AIXCOM T/R Relay with an SDS DR12V Reed Relay.



DISCLAIMER:

I am not recommending anyone perform this modification.  I am simply passing along the information.  Do your own due dilligence - and don't call me if something fails!



THERE ARE NO STEP-BY-STEP INSTRUCTIONS FOR THIS MOD.



It is claimed that this mod is very easy and from the pictures (see photo gallery below), it seems easy enough to do for anyone who can solder.



DL3MCO:

I have used these relays in several small transistorized amplifiers with 200w or more and never had any problems.  See magazine article below (in German).



RELAY SOURCE:

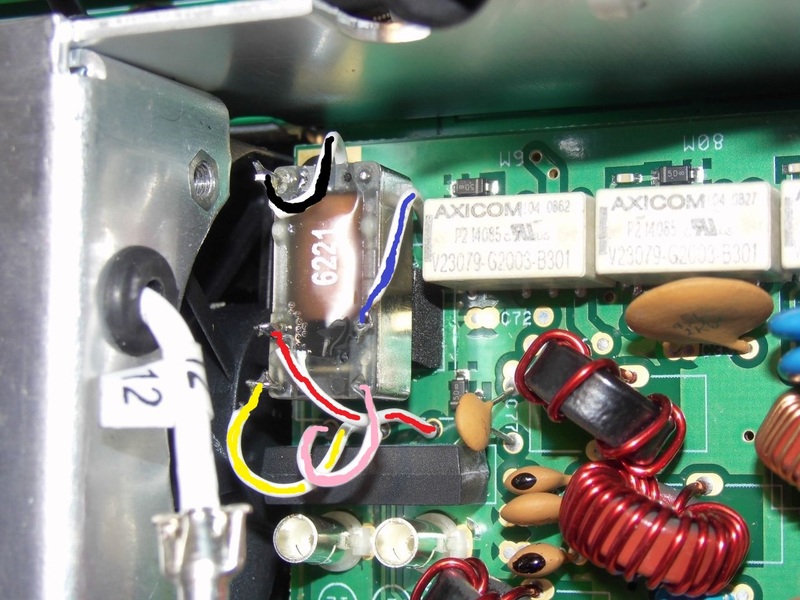

PHOTO GALLERY:

DOWNLOADS

Download
SDS DR12V RELAY SPECIFICATIONS
DR Series Relays Specs.pdf
PDF-Dokument [61.7 KB]
Download
Original AIXCOM Relay Specifications
ENG_SS_108-98002_U TT TR Relay.pdf
PDF-Dokument [1.7 MB]

DL3MCO's Magazine Article:

Download
Using the DR12V in a KL500 Amplifier
The KL500 is a 300w amplifier.
DL3MCO KL500-Umbau.pdf
PDF-Dokument [101.0 KB]
