Fiberglass Spiderpoles

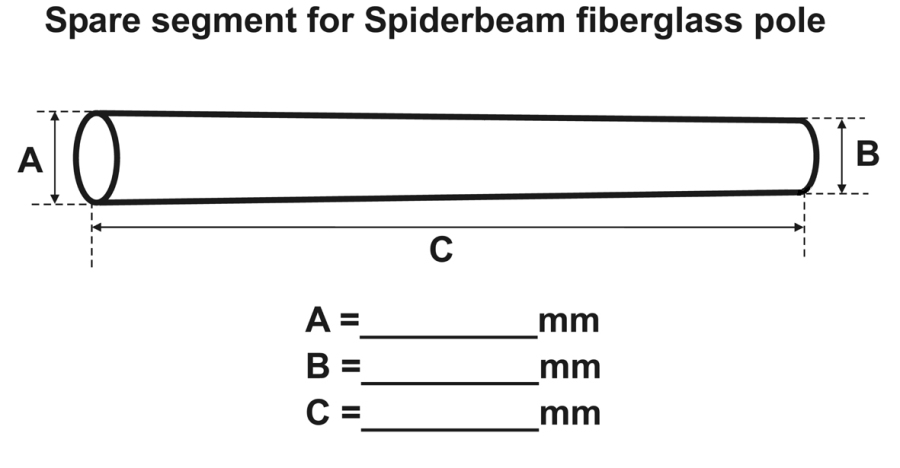

MEASUREMENTS:

These are the three measurement

that we specify for each segment.

This was the original measurements document. It does not show the 22m pole.

Remember: We count pole segments, starting from the bottom as segment #1.

Fiberglass Pole Segment Measurements
<<< CONFIDENTIAL >>> Do not give out this document. Individual segment measurements are OK to share, but only for a few segments.
Fiberglasmast_Abmessungen-1.pdf
PDF-Dokument [14.1 KB]

Measurements for the 22m Spiderpole:

22m Spiderpole Measurements
<<< CONFIDENTIAL >>> Do not give out this document. Individual segment measurements are OK to share, but only for a few segments.
22m FG Pole Measurements.xlsx
Microsoft Excel-Dokument [13.1 KB]

Measurements for the 26m Spiderpole:

26m Spiderpole Measurement
<<< CONFIDENTIAL >>> Do not give out this document. Individual segment measurements are OK to share, but only for a few segments.
26m FG Pole Measurements.xlsx
Microsoft Excel-Dokument [12.4 KB]

26m Spiderpole Guy Belt Position:

Top Guy Belt: at the bottom of segment 12, just above segment 11 - (approx. 19m height)
Middle Guy Belt: at the bottom of segment 8, just above segment 7 - (approx. 12m height)
Bottom Guy Belt: at the bottom of segment 5, just above segment 4 - (approx. 7m height)
